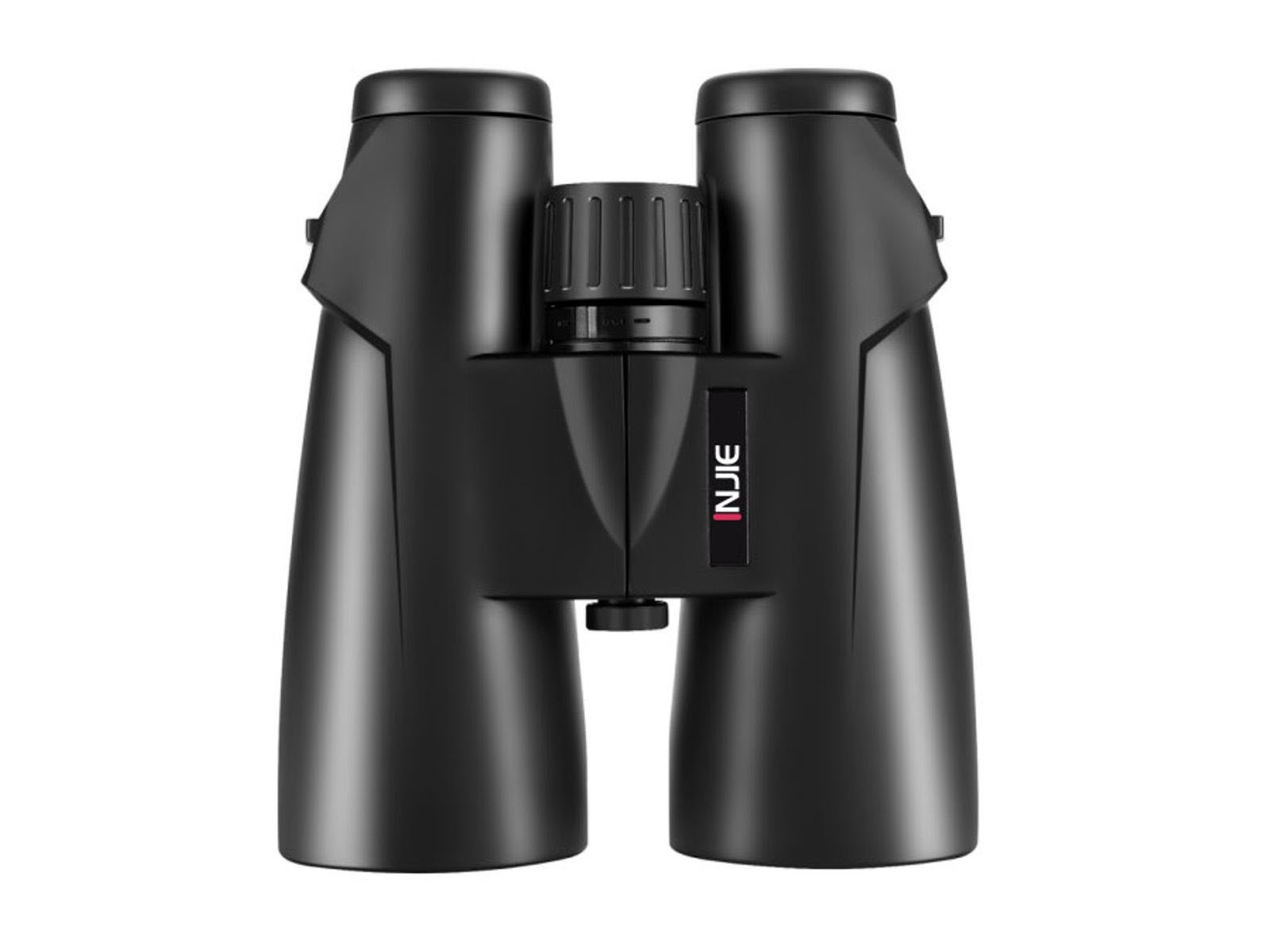

INJIE Lieying 12×56 ED High-Magnification Low-Light Binoculars (Non-Infrared)
INJIE Lieying 12×56 ED Binoculars
High-Magnification • Low-Light • HD Optics • Portable Design
Explore the world in stunning detail. The INJIE Lieying 12×56 ED binoculars combine advanced optical technology with thoughtful design to deliver clear, bright images in a wide range of conditions — all in a portable, user-friendly package.
Key Features
High Magnification & Clear Imaging
Large 56mm objective lenses provide bright, sharp images while keeping the weight and size manageable for easy portability.
IPX7 Waterproof & Fogproof
Nitrogen-filled waterproof design protects against water and fog, ensuring reliable performance even in harsh environments.
FMC Broadband Green Coatings
Fully multi-coated optics deliver up to 93% light transmission, providing bright, high-contrast images with true-to-life color reproduction.
ED Lenses
Extra-low dispersion (ED) lenses minimize chromatic aberration and edge distortion, ensuring clear, panoramic views without black borders.
Large Eyepieces
Wide-field eyepieces provide a comfortable viewing experience, ideal for long observation sessions.
Portable Roof Prism Design
Compact and lightweight — roughly the height of a smartphone — making it perfect for outdoor adventures.
Innovative & Attractive Design
Designed through over 30 concept sketches, combining aesthetics with functionality to produce a visually appealing and practical product.
Smartphone Connectivity
With a phone adapter, easily connect your binoculars to your smartphone to capture photos or videos, preserving every beautiful moment.
Versatile Applications
Ideal for hiking, wildlife observation, and construction site surveying — bringing the world closer and clearer than ever.
Technical Specifications
| Specification | Details |
|---|---|
| Magnification | 12× |
| Objective Lens Diameter | 56 mm |
| Eyepiece Diameter | 24 mm |
| Prism Type | Roof Prism |
| Prism Material | BaK4 |
| Optical Glass | ED Lens |
| Coating | Fully Multi-Coated (FMC) |
| Focus System | Central Focus |
| Eyepiece | 5E3G |
| Objective Lens | 4E3G |
| Exit Pupil | 4.7 mm |
| Eye Relief | 15.7 mm |
| Angular Field of View | 5.5° |
| Field of View | 96 m @ 1000 m • 288 ft @ 1000 yds |
| Close Focus | 3 m |
| Relative Brightness | 17.6 |
| Twilight Factor | 24.5 |
| Light Transmission | 82% |
| Resolution | 3.8″ |
| Diopter Adjustment | ±4D |
| Interpupillary Distance | 56–77 mm |
| Waterproof Rating | IPX7 (1 m / 30 min) |
| Body Material | Composite Plastic |
| Exterior Armor | PVC |
| Eyepiece Type | Twist-Up |
| Dimensions | 168 × 148 × 69 mm |
| Weight | 1094 g |
| Tripod Adaptable | Yes (Standard Tripod Thread) |
What’s in the Box
INJIE Lieying 12×56 ED Binoculars
Eyepiece Covers
Carrying Pouch
Neck Strap
Cleaning Cloth
User Manual
Warranty Card
Retail Gift Box
