Laser Rangefinder

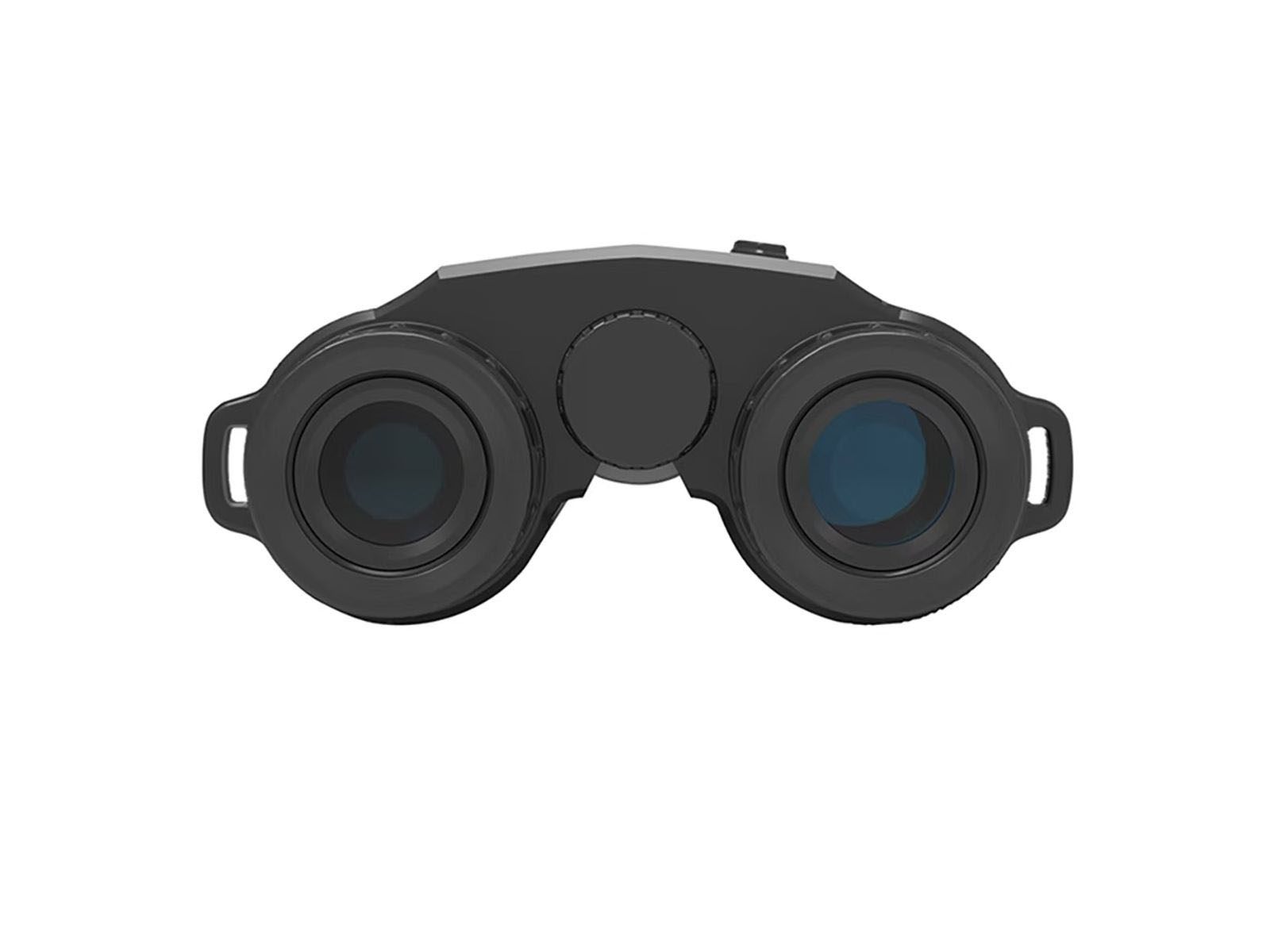

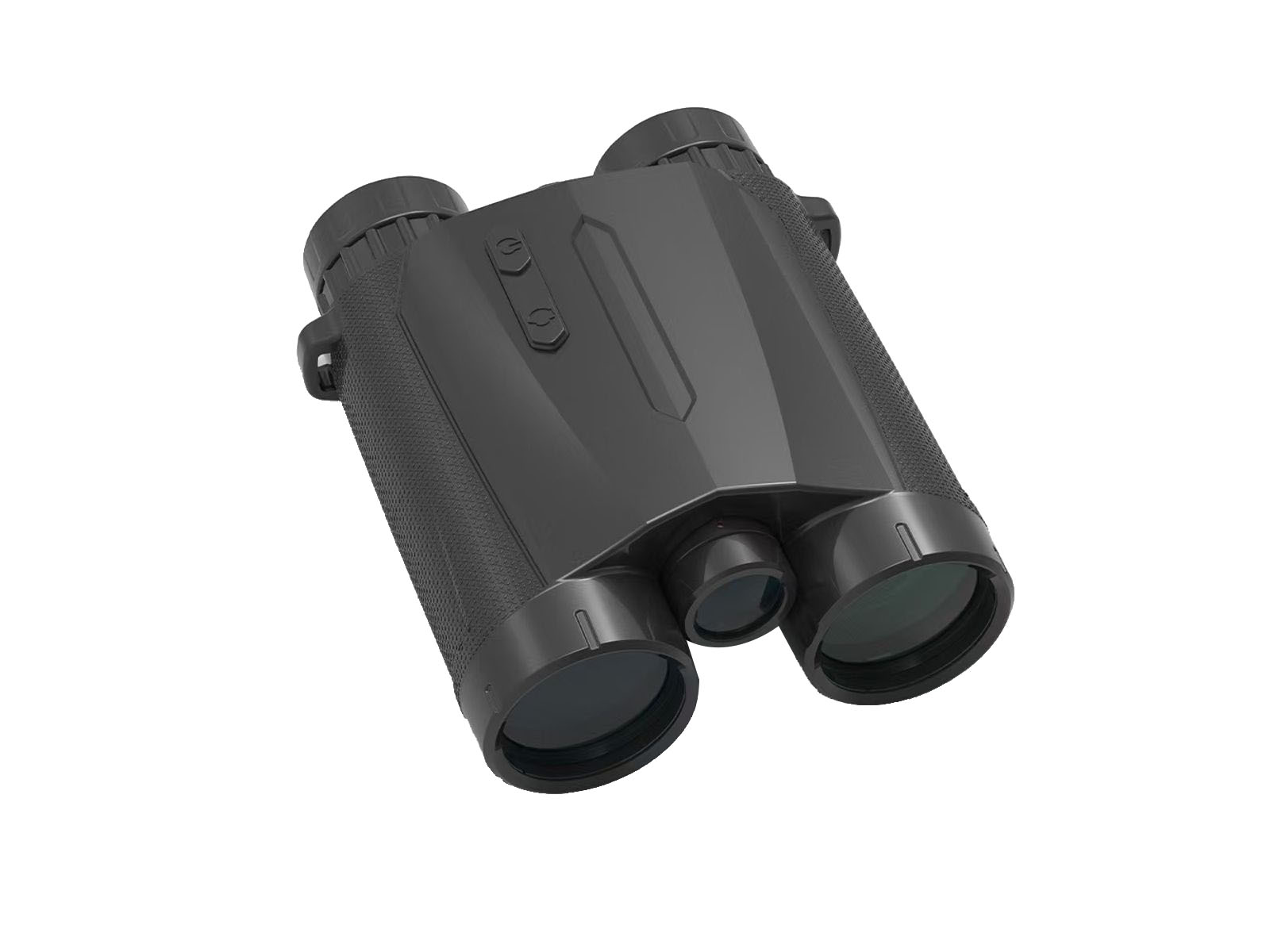

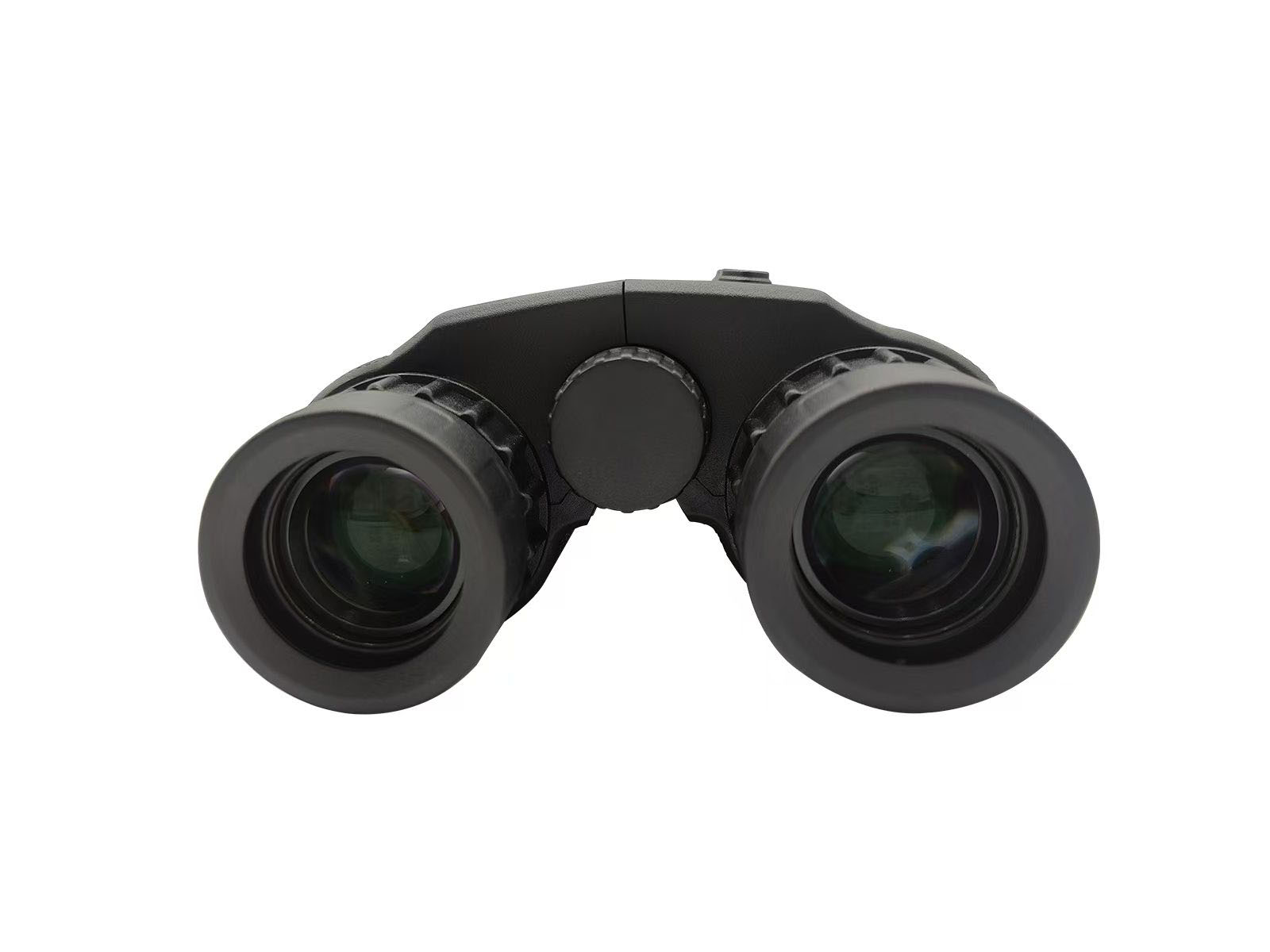

INJIE BR2000 High-Precision Binocular Laser Rangefinder

The INJIE BR2000 binocular laser rangefinder combines high-definition optical observation with precision laser ranging. Featuring 8 optical magnification, it allows users to easily observe and lock onto targets for accurate measurements. Multiple measurement modes — including distance, vertical height, horizontal distance, and angle — provide versatile functionality for professional and outdoor use.
Description Questions and Answers
Description

INJIE BR2000 Binocular Laser Rangefinder


Observe, Measure, and Achieve High-Definition Distance Readings

The INJIE BR2000 binocular laser rangefinder combines high-definition optical observation with precision laser ranging. Featuring 8× optical magnification, it allows users to easily observe and lock onto targets for accurate measurements. Multiple measurement modes — including distance, vertical height, horizontal distance, and angle — provide versatile functionality for professional and outdoor use.

Fully multi-coated lenses and BAK4 prisms deliver bright, stable, and sharp images even in low-light or twilight conditions, ensuring clear visibility and reliable readings at all times.


Key Features

  1. Integrated Optical Observation & Laser Ranging – Combines the performance of binoculars with the functionality of a laser rangefinder.

  2. Multiple Measurement Modes – Distance, height, horizontal distance, and angle.

  3. Long-Range Measurement – Can measure distances up to 2000 meters without a cooperative target.

  4. High Sensitivity & Safe Laser – Fast and intuitive readings; low-power laser is safe for the human eye.

  5. High-Quality Optics – Fully multi-coated broadband green lenses for bright, clear images.

  6. Durable & Ergonomic Design – Sturdy exterior with comfortable handling.


Applications

Power industry, industrial inspections, forestry, security, geological surveys, construction, hunting, camping, and mountaineering.


Technical Specifications

SpecificationDetails
Measurement Range10–2000 m
Measurement Accuracy±1 m
Angle Range±60°
Angle Accuracy±1°
Laser Type905 nm (Class 1)
Magnification
Objective Lens Diameter32 mm
Effective Eyepiece22 mm
Exit Pupil Diameter4 mm
Eye Relief19.3 mm
Field of View
Diopter Adjustment-5 ~ +5 D
Focus TypeCentral + Left/Right Adjustment
Prism TypeBAK4
Display TypeReflective OLED
Battery TypeCR2
Weight945 g
Dimensions150 × 135 × 65 mm
Operating Temperature-10℃ ~ +60℃


What’s in the Box

  • INJIE BR2000 Binocular Laser Rangefinder

  • Carrying Pouch

  • Neck Strap

  • Lens Covers

  • Cleaning Cloth

  • User Manual

  • Warranty Card

  • Retail Gift Box
