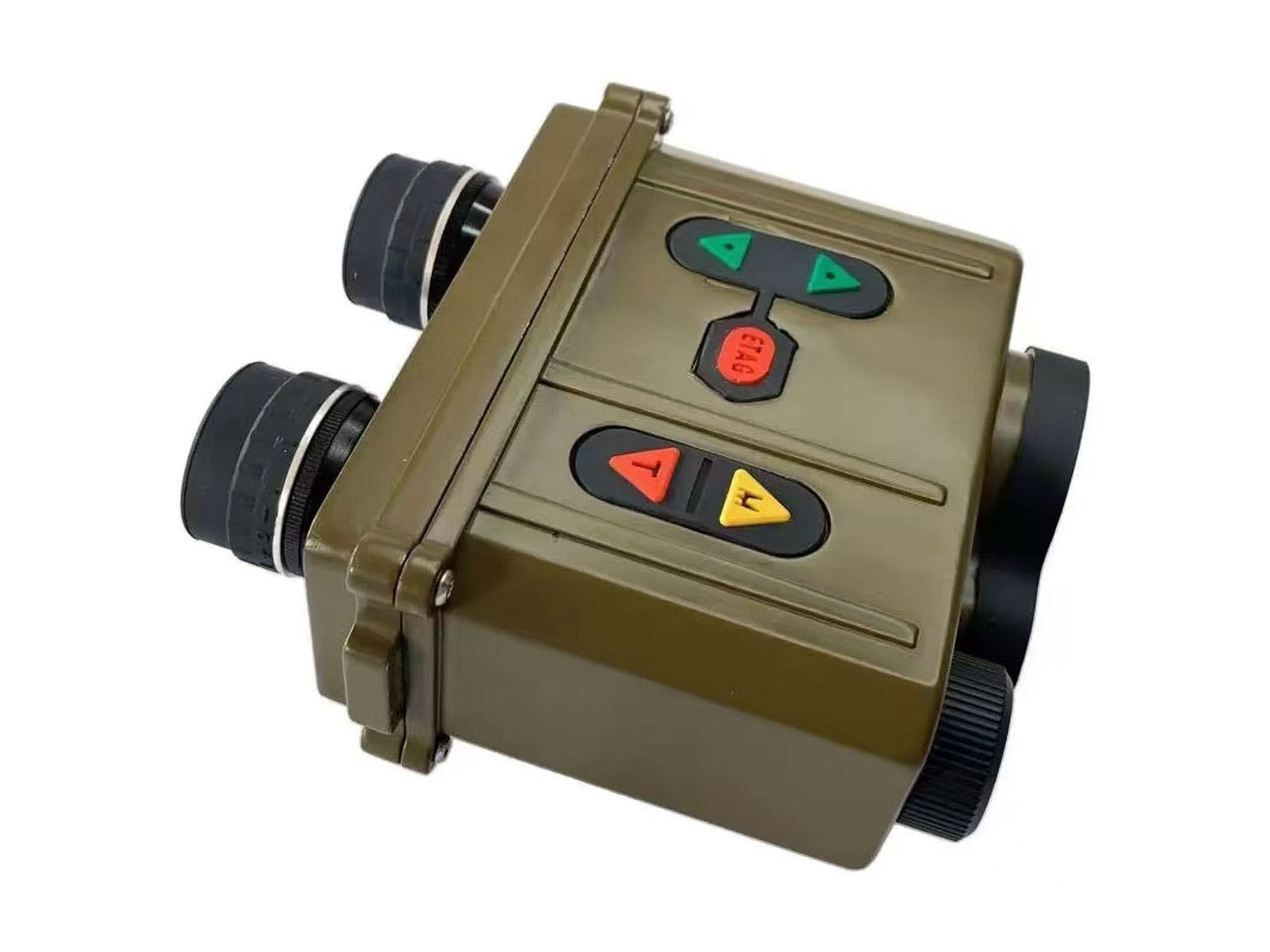

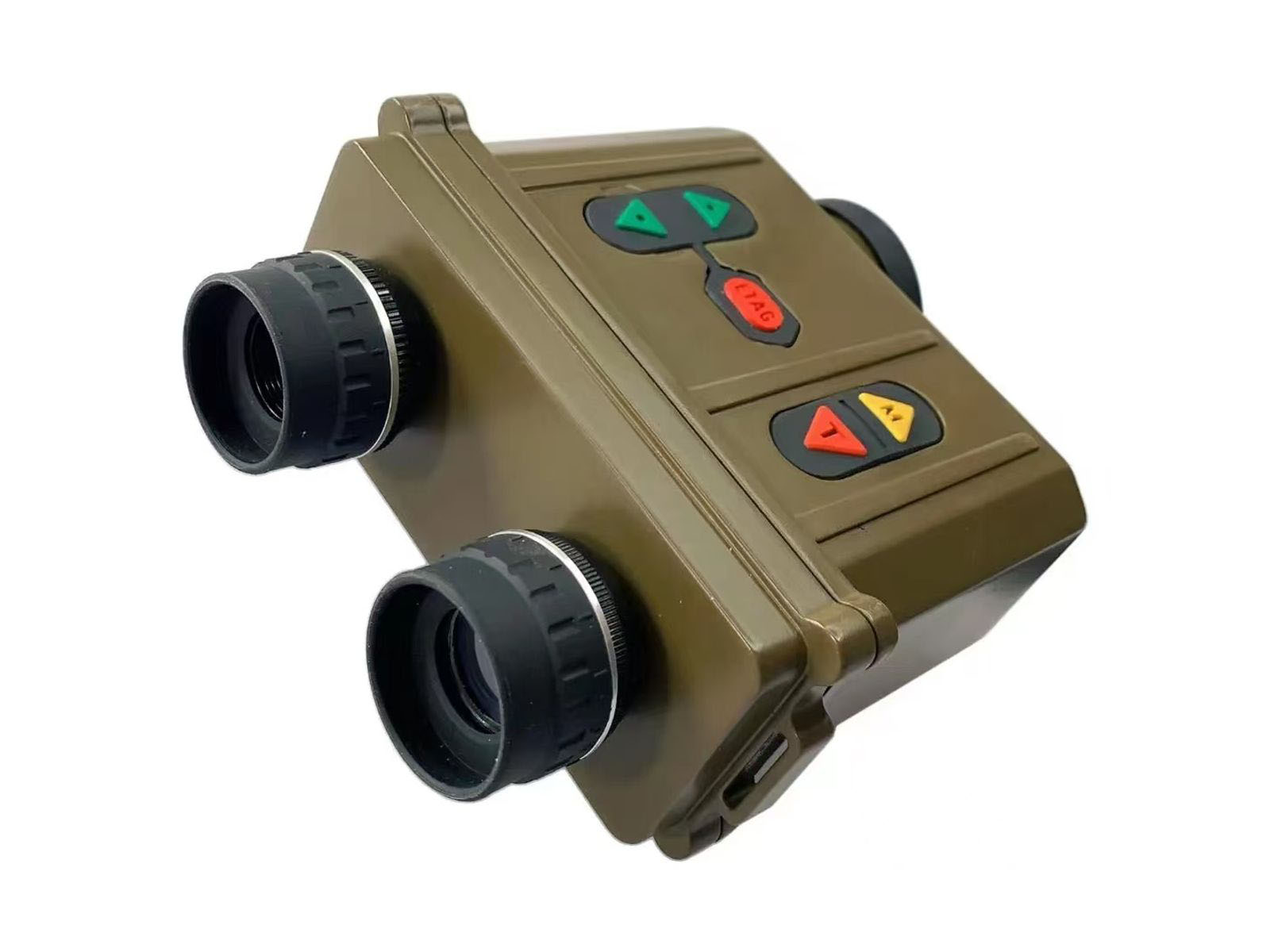

INJIE 8000BDR-L Binocular Long-Range Laser Rangefinder
INJIE 8000BDR-L Binocular Long-Range Laser Rangefinder
High-Precision Distance Measurement up to 8000 Meters
The INJIE 8000BDR-L is a fully upgraded binocular long-range laser rangefinder designed for fast measurement, automatic focusing, and precise distance calculation. It features powerful data storage, optional azimuth, Bluetooth, GPS positioning, and tilt measurement, all in a compact, portable, and user-friendly device.
Widely used in rivers, navigation channels, markers, telecommunication, cables, geological surveys, meteorology, airports, and forestry, the 8000BDR-L offers professional-grade performance for various field operations.
Key Features
High-Accuracy Measurement – Distance precision up to ±0.5 m.
Automatic Focusing & Fast Measurement – Quick acquisition of targets with average distance calculation.
Optional Functionality – Supports azimuth, Bluetooth, GPS (Beidou), and tilt measurement.
Data Storage & Management – Store up to 10 measurements; supports data retrieval, deletion, and RS232 output.
OLED Display – Adjustable backlight and crosshair brightness; automatic shutdown after 30 seconds of inactivity.
Durable & Compact Design – Dustproof, waterproof, and shock-resistant; lightweight and portable.
Advanced Laser Source – Nd:YAG, 1064 nm, output ≥5 mJ, working life ≥20,000 shots.
Versatile Applications – Electric power, industry, forestry, security, border patrol, railway, geological exploration, construction, hunting, camping, and mountaineering.
Technical Specifications
| Specification | Details |
|---|---|
| Laser Source | Nd:YAG |
| Wavelength | 1064 nm |
| Output Energy | ≥5 mJ |
| Lifetime | ≥20,000 shots |
| Distance Range | 30–8000 m |
| Measurement Accuracy | ±0.5 m |
| Distance Gating | 20–6000 m (10 m step) |
| Measurement Success Rate | 98% |
| Repeat Rate | 1/10 (6 times/min) |
| Receiving Aperture | 31 mm |
| Field of View | 6.5° |
| Magnification | 7× |
| Operating Temperature | -40℃ ~ +50℃ |
| Environmental Protection | Dustproof, waterproof, shock-resistant |
| Dimensions | 60 × 130 × 139 mm |
| Weight | 680 g |
| Data Functions | Average measurement, data storage, data transmission (RS232, 115200, 8, N, 1), retrieval, and serial number display |
| Display | OLED, with crosshair illumination and brightness adjustment |
| Power Supply | 7.4 V or 11.1 V / 1000 mAh polymer lithium battery |
| Battery Life | >2000 measurements per full battery at normal temperature |
Power & Charging
Use only the supplied 7.4V or 11.1V polymer lithium battery.
Charge with the dedicated charger; blue LED indicates ready, red LED indicates charging.
Do not expose batteries to fire or metal contacts; avoid opening battery packs.
Recommended charging environment: 0℃–40℃, relative humidity ≤80%.
Long-term storage: Keep batteries in the packaging box, not inside the device.
Mounting & Tripod Use
Can be mounted via 1/4" tripod screw for stable long-distance measurement.
Compatible with dovetail mount and adapter for connecting to theodolites or external trigger cables for remote measurement.
Package Contents
Carrying Case
INJIE 8000BDR-L Laser Rangefinder
Charger
Battery Pack
External Trigger Cable
Cleaning Cloth
Certificate of Conformity
Warranty Card
User Manual
