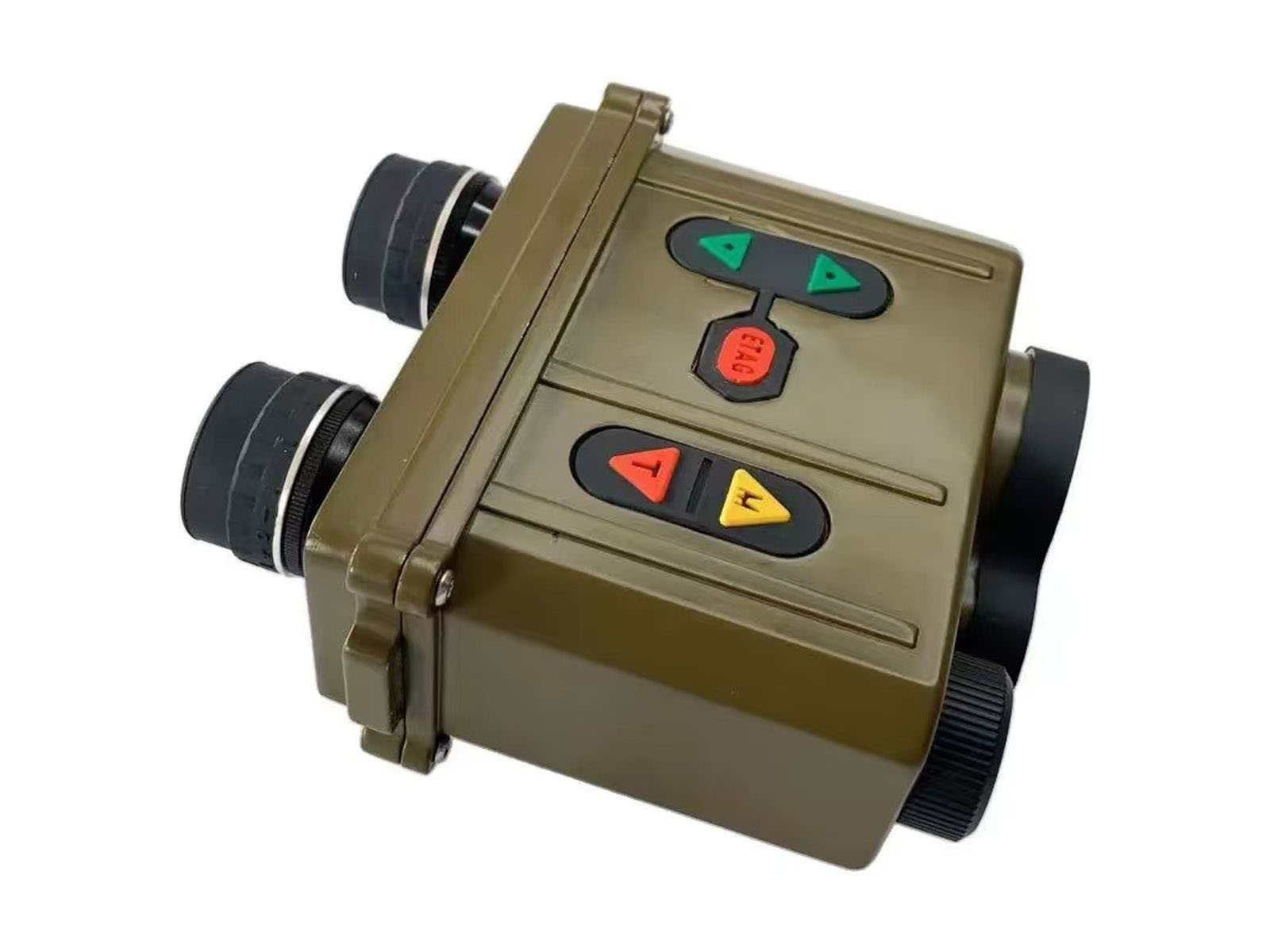

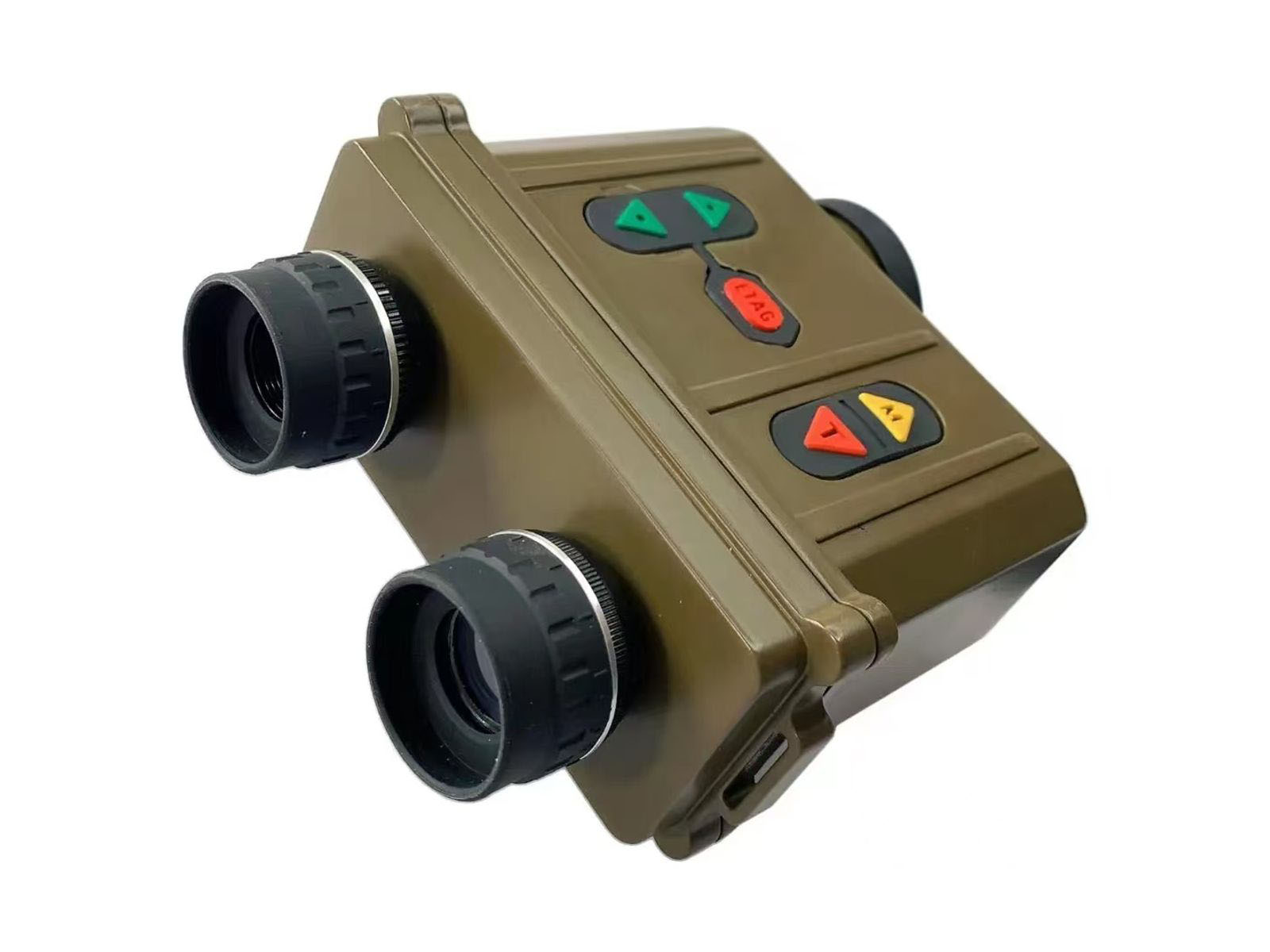

INJIE 5000BDR-L Binocular Long-Range Laser Rangefinder
INJIE 5000BDR-L Binocular Long-Range Laser Rangefinder
The INJIE 5000BDR-L is the latest upgraded binocular long-range laser rangefinder, featuring fast measurement, auto-focus, and precise distance calculation. It also includes powerful data storage and retrieval functions. Optional modules for azimuth, Bluetooth, GPS, and tilt angle expand its capabilities, making it a compact, easy-to-carry, and versatile solution.
Widely used in rivers, waterways, surveying stakes, telecommunications, cables, geological measurement, meteorology, airports, forests, and more, the 5000BDR-L is suitable for both professional and outdoor applications.
Key Features
High Measurement Accuracy – up to ±0.5 m.
Distance Gating & Averaging (AGV) – set minimum measurement channels and compute average distances.
Connectivity – standard RS232 interface; optional Bluetooth and PDA/PC connection for data transfer.
Data Storage & Management – store, view, send, retrieve, and delete measurement data.
Optional GPS/Beidou Positioning – integrate location data for advanced operations.
Advanced Utility Functions – distance gating, averaging, data management, serial number display, crosshair brightness adjustment, OLED display brightness adjustment.
Robust & Versatile – dustproof, waterproof, shock-resistant, small and lightweight.
Applications
ower, industry, forestry, security, border patrol, railway, geologic survey, construction, outdoor hunting, mountaineering, and more.
Technical Specifications
Light Source: Nd:YAG
Wavelength: 1064 nm
Output Energy: ≥5 mJ
Laser Lifetime: ≥20,000 shots
Measurement Range: 30–4000 m
Distance Accuracy: ±0.5 m
Distance Gating: 20–4000 m (10 m increments)
Measurement Probability: 98%
Repeat Rate: 1/10 (6 measurements/min)
Receiving Aperture: 31 mm
Field of View: 6.5°
Magnification: 7×
Operating Temperature: -40℃ to +50℃
Environmental Adaptation: Dustproof, waterproof, shock-resistant
Dimensions: 60 × 130 × 139 mm
Weight: 680 g
Data Functions: Average measurement, storage (10 datasets), data output (RS232, 115200, 8, N, 1), OLED display, reticle illumination, brightness adjustment, 30s auto-off
Power Supply: Polymer lithium battery pack (7.4V or 11.1V / 1000 mAh), ≥2000 measurements per fully charged battery
Power & Charging
Use only the dedicated polymer lithium battery pack (7.4V or 11.1V/1000 mAh).
Charge via the included charger: insert AC110–240V power, blue indicator lights up. Insert battery, red light indicates charging. Full charge: red off, blue on.
Always remove the battery from the rangefinder before charging to avoid device damage.
Charge environment: 0–40℃, humidity ≤80%. Do not expose battery to fire or moisture.
Storage: Long-term storage: keep battery in packaging box, not inside the rangefinder.
Mounting & Operation
For stable, long-distance measurements, mount via the 1/4" screw hole on the device bottom or dovetail slot using the special adapter. Remote measurements possible via external trigger cable.
Package Contents
Carrying Case
INJIE 5000BDR-L Rangefinder
Charger
Battery Pack
External Trigger Cable
Cleaning Cloth
Certificate of Conformity
Warranty Card
User Manual
