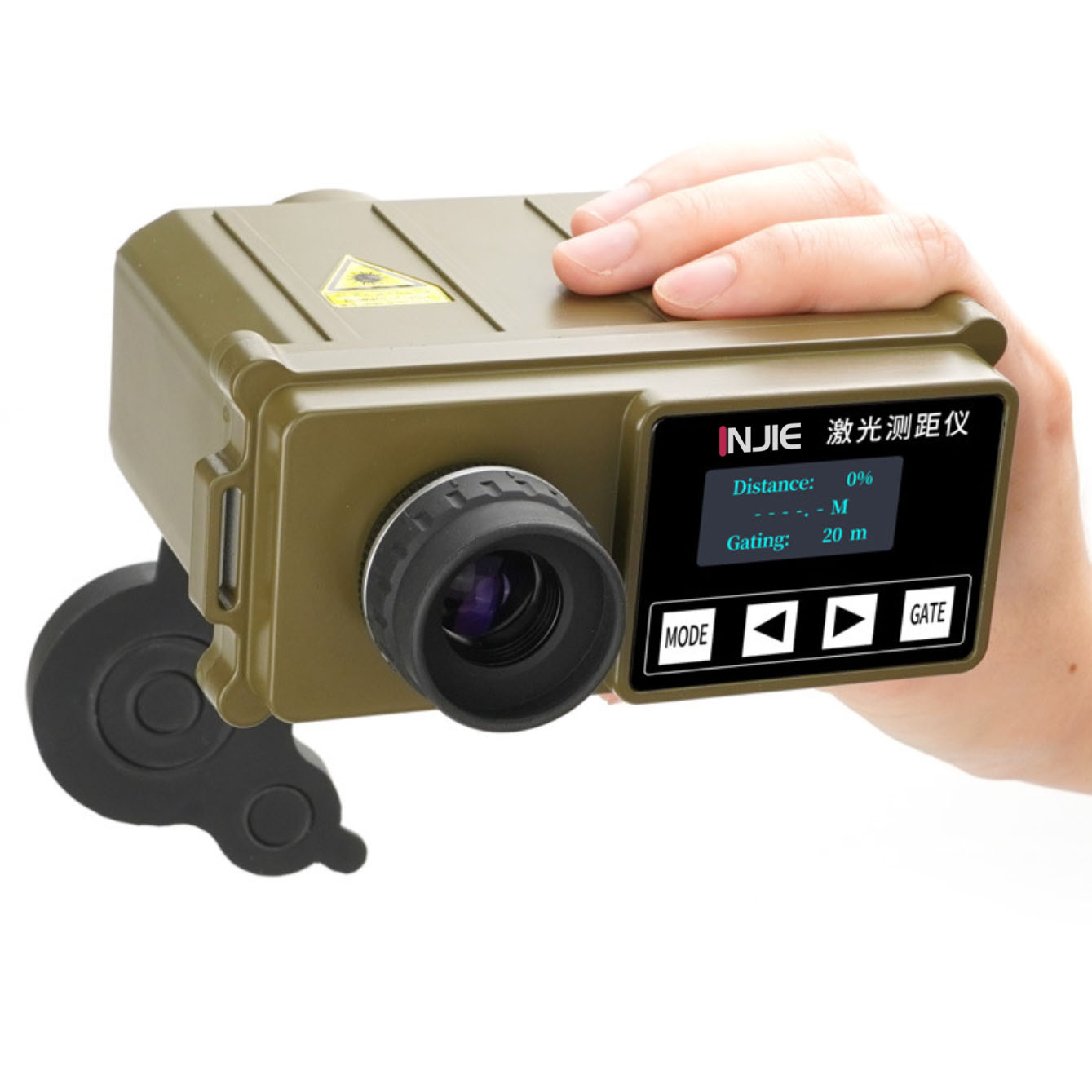

INJIE 10000LRT-X Monocular Laser Rangefinder – Long-Range Measurement up to 10,000 m

The INJIE 10000LRT-X adopts a monocular dual-function optical structure—combining the receiving and aiming optical paths, while keeping the laser emission path independent. This design enables fast measurement, automatic focusing, and highly precise distance calculations, with advanced data storage capabilities.

Compact, lightweight, and user-friendly, it supports optional azimuth, Bluetooth, GPS, and tilt angle functions, making it versatile for industries such as river and channel surveying, telecom, cable inspection, geological surveys, meteorology, airport operations, and forestry monitoring.

Key Features

High Accuracy Measurement: ±0.5 m precision over a range of 30–10,000 m.

Gate Function & Average Measurement: Select minimum range channel and calculate average distance (AGV).

Data Connectivity: Standard RS232 port, compatible with Bluetooth and PDA; data can be stored, sent, retrieved, and deleted.

Optional GPS (Beidou) Positioning: Supports accurate location recording.

Advanced Auxiliary Functions: Includes gate selection, average calculation, data storage, data transmission, data retrieval, product serial number display, crosshair brightness adjustment, and OLED backlight brightness adjustment.

Durable & Weatherproof: Dustproof, waterproof, and shock-resistant.

Technical Specifications

Laser Source: Nd:YAG

Wavelength: 1064 nm

Output Energy: ≥5 mJ

Laser Lifetime: ≥20,000 shots

Measurement Range: 30–10,000 m

Measurement Accuracy: ±0.5 m

Distance Gating: 20–4000 m (10 m increments)

Measurement Success Rate: 98%

Repeat Frequency: 1/10 (6 times/min)

Averaging Function: Yes

Data Storage: Up to 10 measurements

Data Transmission: RS232 (115200, 8, N, 1)

Display: OLED with reticle illumination and brightness adjustment; auto-off after 30 s

Receiving Aperture: 31 mm

Field of View: 6.5°

Magnification: 7×

Operating Temperature: -40°C to +50°C

Dimensions: 60 × 130 × 139 mm

Weight: 635 g

Environmental Resistance: Dustproof, waterproof, shockproof

Power Supply: 7.4V or 11.1V polymer lithium battery pack (1000 mAh), capable of ≥2000 measurements per fully charged battery

Mounting & Setup

For stable, long-distance measurements, the rangefinder can be mounted via a 1/4-inch tripod screw or dovetail adapter, compatible with total stations or external triggering systems for remote measurements.

Battery & Charging

Use only the specified 7.4V or 11.1V/1000mAh polymer lithium battery pack.

Charge using the supplied charger; ensure battery is removed from the instrument before charging.

Charging temperature: 0–40°C, relative humidity ≤80%.

Avoid metal contact with battery terminals or exposure to fire.

When not in use for extended periods, store batteries in their packaging, not inside the device.

Charging indicator: Red = charging, Blue = fully charged.

Package Contents

INJIE 10000LRT-X Rangefinder

Hard Carry Case

Charger

Battery Pack

External Trigger Cable

Cleaning Cloth

Certificate of Conformity

Warranty Card

User Manual
