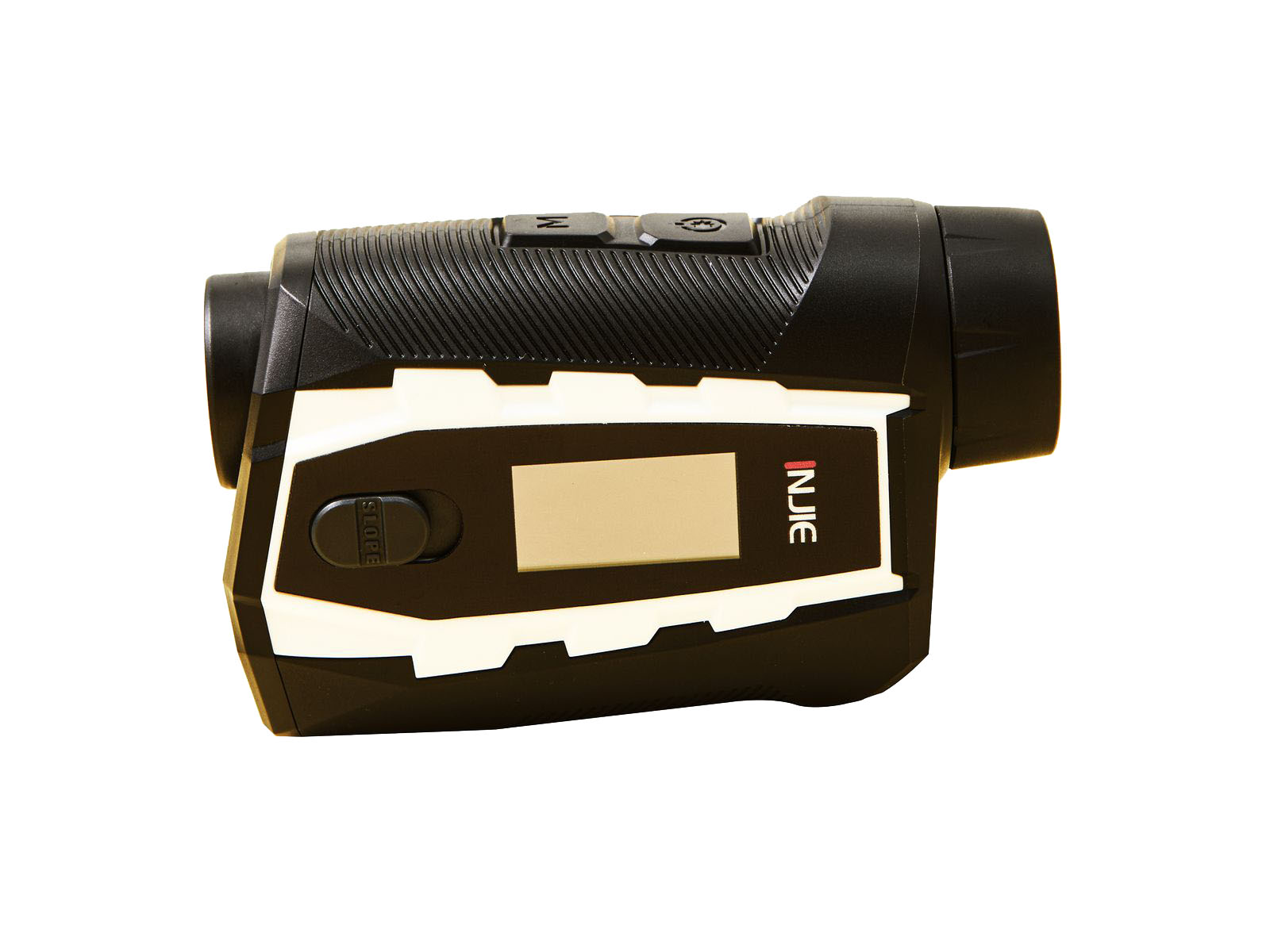

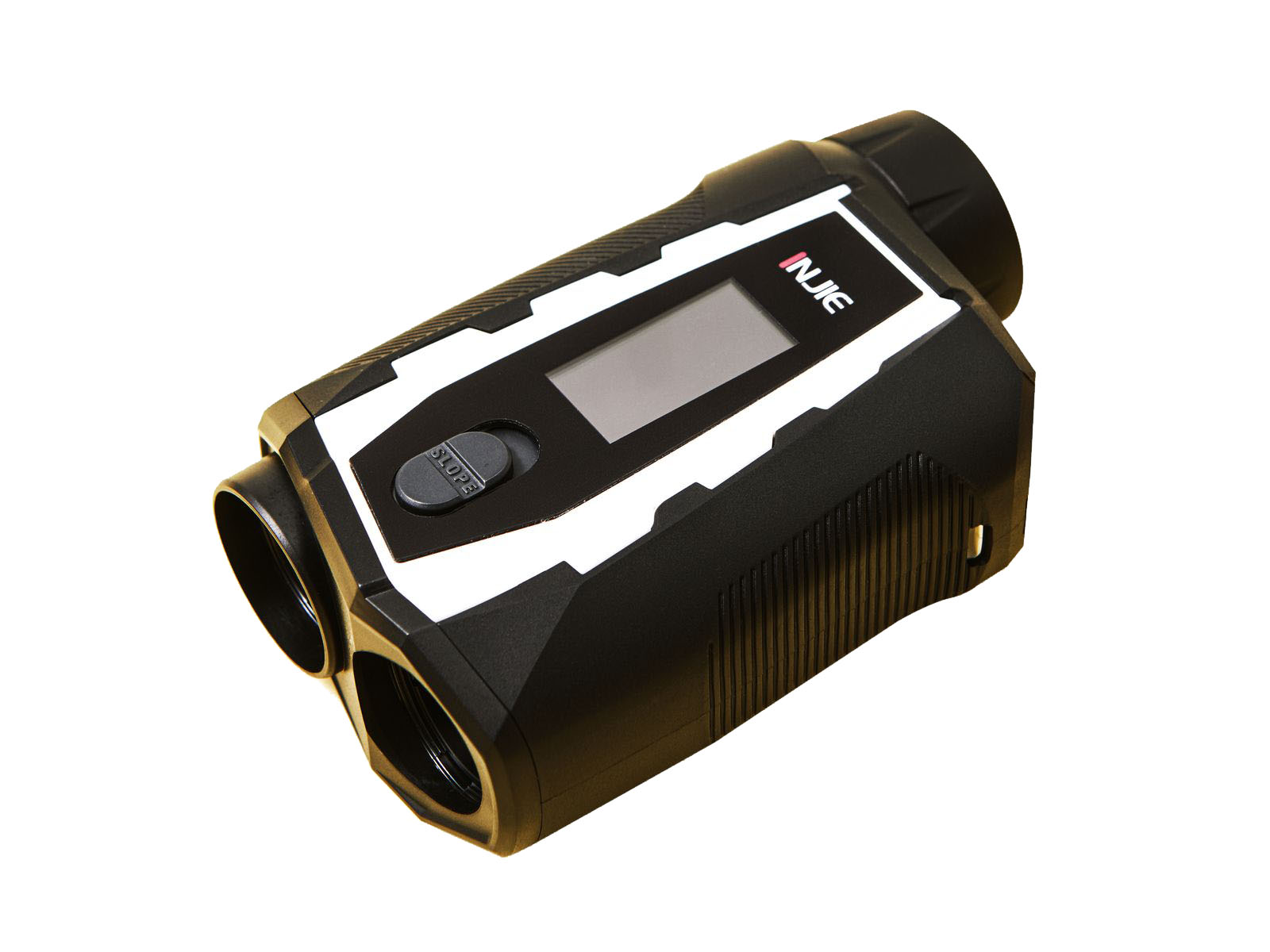

INJIE 1000LDR Laser Rangefinder
INJIE 1000LDR Laser Rangefinder – Telescope & Multi-Function Measurement Device
Functions:
Telescope + Laser Rangefinder
Height Measurement
Angle Measurement
Speed Measurement
Single Measurement
Continuous Measurement
Automatic Horizontal Measurement
The INJIE 1000LDR is a portable electro-optical instrument combining a telescope with a laser rangefinder, offering fast and accurate distance measurements. It is suitable for surveying, power inspection, security, marine observation, forestry, outdoor hunting, golf, and field exploration, greatly enhancing work efficiency.
Applications:
Surveying and mapping
Power infrastructure inspection
Security and surveillance
Marine observation
Forestry and environmental monitoring
Outdoor hunting
Golf courses
Field exploration
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 1000LDR |
| Measurement Range | 3–400 m |
| Units | Meters (m), Yards (Yd) |
| Distance Accuracy | ±0.3 m |
| Angle Accuracy | ±1° |
| Laser Wavelength | 905 nm |
| Angle Measurement Range | -90° to +90° |
| Ballistic Compensation Angle | -20° to +20° |
| Eye Safety | FDA (CFR21) |
| Field of View | 7° |
| Magnification | 8× |
| Objective Lens Diameter | 22 mm |
| Eyepiece Diameter | 16 mm |
| Exit Pupil | 3.7 mm |
| Diopter Adjustment | ±5 D |
| Operating Temperature | -10°C to +50°C |
| Speed Measurement Range | 18–300 km/h |
| Display | Through-type LCD |
| Bluetooth | Available only on Bluetooth version |
| Weight (without battery) | 223 g |
| Dimensions | 118 × 79 × 42 mm |
| Tripod Mount | ✔ |
| Two-Point Height Measurement | ✔ |
| Continuous Measurement | ✔ |
| Flagpole Scanning (Near-Priority) | ✔ |
| Angle Measurement | ✔ |
| Speed Measurement | ✔ |
| Angle Sensor Switch | ✔ |
| Golf Ballistic Compensation | ✔ |
| Automatic Horizontal Mode | ✔ |
| Area Measurement Mode | ✔ |
| Volume Measurement Mode | ✔ |
| External Display | ✔ |
| External Display Switch | ✔ |
The 1000LDR provides high-precision laser measurement with a compact, dual-display telescope form, ideal for professional surveying, outdoor observation, and measurement tasks.
